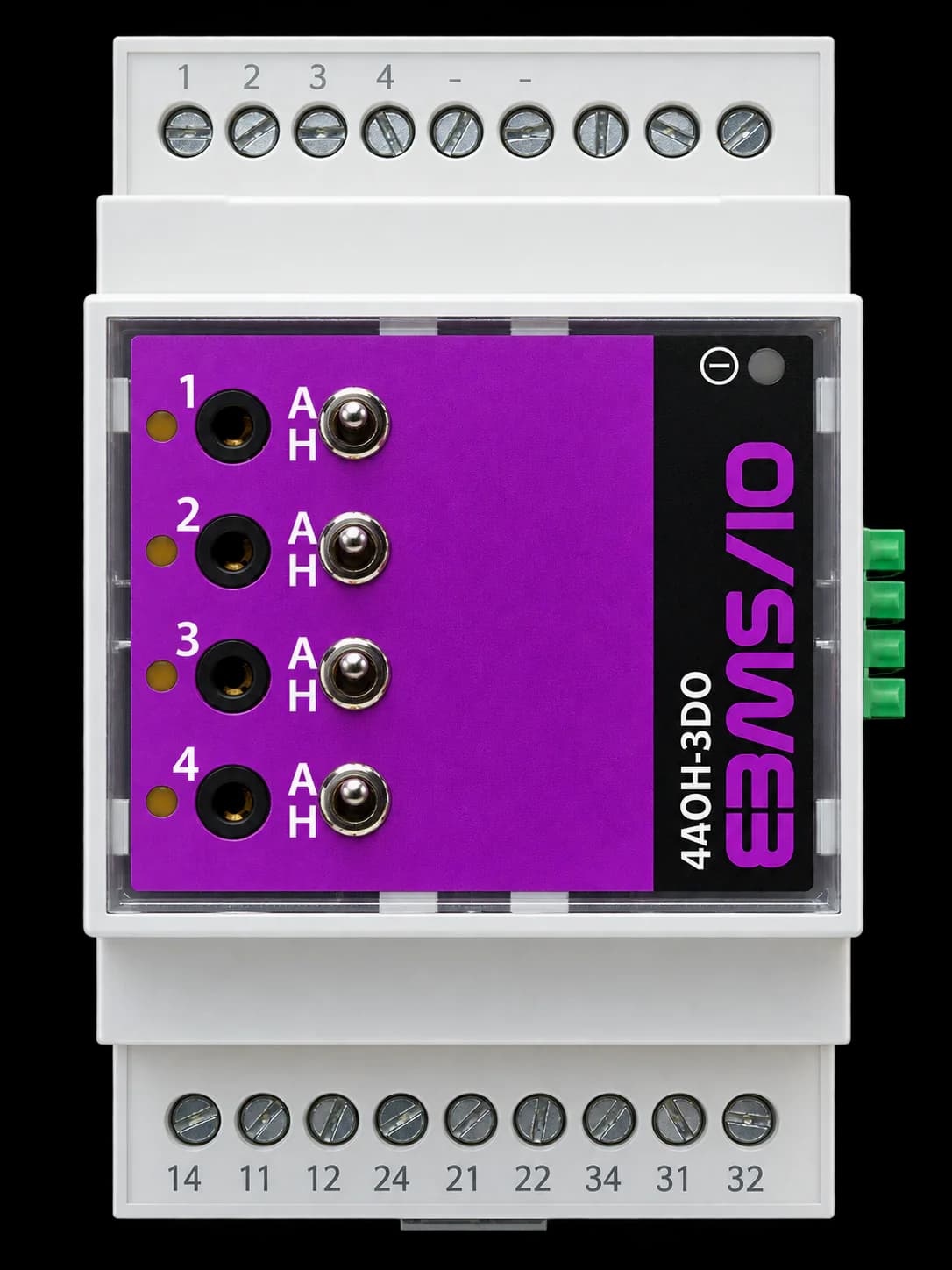

The WebEasy AO/DO (Multi Output Module), featuring 4 x AO with Override and 3 x DO, offers precise control for building management systems. This module includes four independent analogue output channels, each providing 0 to 10V DC. Each output has hand-auto override switches, setting potentiometers, and a yellow LED for output status. It also incorporates three digital relay output channels, rated at 250V AC and 8A, with change-over contact configuration.

With an IP20 rating, the module mounts easily on standard TS35 DIN rail or directly. Its cascadable design allows power and 2-wire RS485 Modbus communications to pass through without additional wiring. Modbus address setting is done via rotary switches beneath the top cover, while a bi-colour LED shows communication status.

Connectivity includes one 2-wire RS485 port, supporting a Modbus communication network connection to the JACE® controller. The AO/DO module integrates via TCP, RS485, or a mixed networking approach. It can work with any system that supports a Modbus interface, with palette files available for Tridium AX and N4, ensuring compatibility across various platforms.
