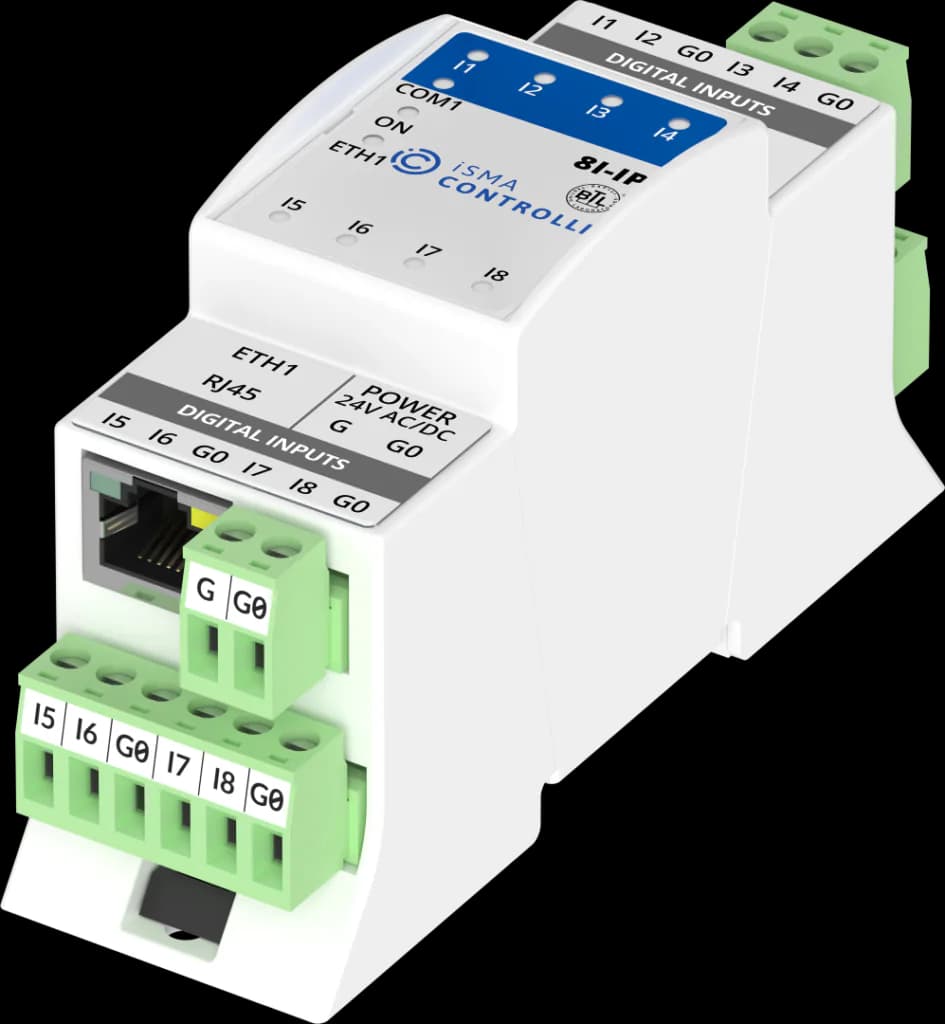

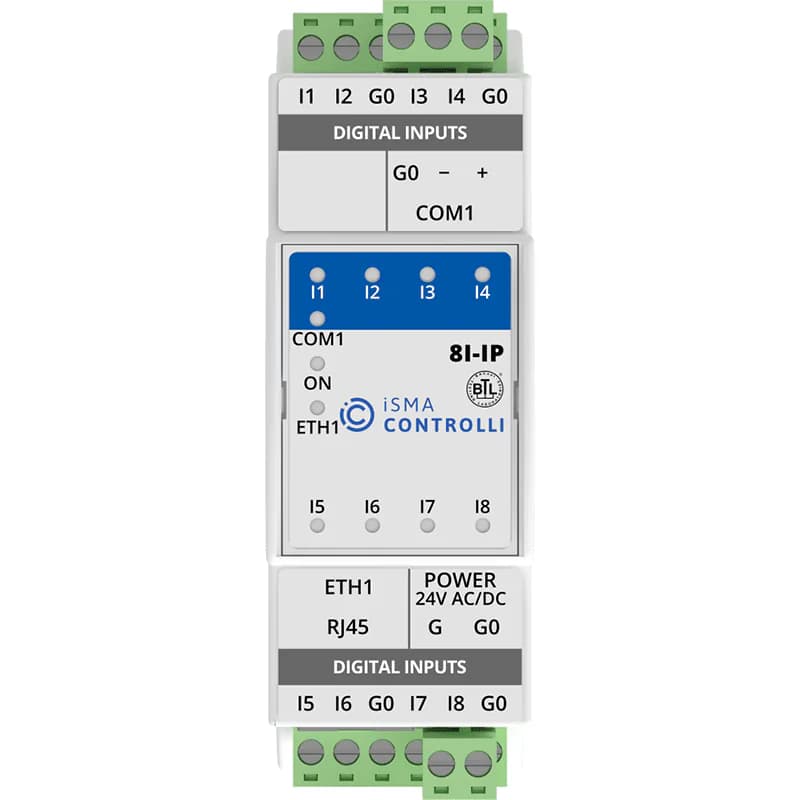

The ISMA-B-8I-IP module includes 8 digital inputs (DI) that function as dry contacts or fast pulse counters, capturing data at a pulse rate of up to 100 Hz. This versatility suits various applications that need dependable input monitoring.

It supports Modbus TCP/IP and BACnet IP communication protocols, easily selected via DIP switches. The built-in Modbus Gateway allows integration with devices using Modbus RS485, expanding connectivity options in your system.

Addressing the module is simple with rotary switches, which streamline the commissioning process. The mini USB port allows for initial setup without an external power supply, ensuring efficient installation.

Measuring 37x110x62 mm and designed for DIN rail mounting, the ISMA-B-8I-IP fits into existing infrastructures. It operates within a temperature range of -10°C to 50°C and has an IP40 rating, suitable for indoor environments.

This module is compatible with various building management systems, including Tridium Jace, Siemens PX range, and Honeywell Centraline, making it a reliable choice for versatile I/O solutions.
