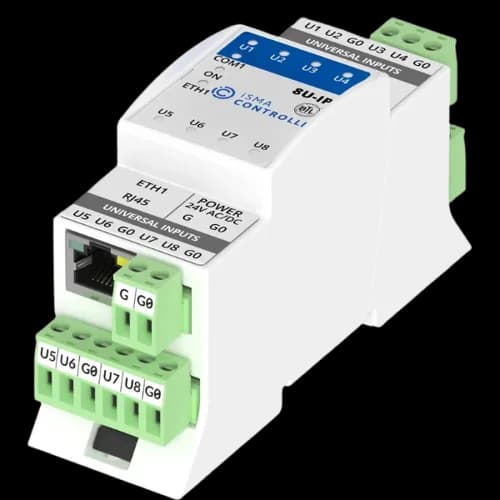

The ISMA I/O module features Modbus TCP/IP and a built-in Modbus Gateway for RS485 or BACnet IP communication, equipped with 8 universal inputs. Its compact size of 35x110x62 mm allows for easy DIN rail mounting, fitting into tight spaces.

Each of the 8 universal inputs accommodates various sensor types, including temperature sensors like Pt1000 and Ni1000, as well as voltage, current, and dry contact measurements. With a 16-bit resolution, the module delivers precise readings across its input range. The integrated Modbus gateway supports up to 128 Modbus slave devices, which increases system scalability.

Configuration is simple, with BACnet and Modbus protocols selectable via DIP switches. A mini USB port enables initial setup without needing an external power source. This module is compatible with systems such as Tridium Jace, Siemens PX range, and Schneider Electric StruxureWare.

The ISMA I/O module operates within a temperature range of -10°C to 50°C and is rated for relative humidity levels of 5 to 95% without condensation. Constructed from self-extinguishing plastic, it has an ingress protection rating of IP40, making it suitable for indoor installations. This module serves as a reliable choice for integrators and facilities teams seeking a dependable I/O solution.
